Cationic Epoxy E Coat Electrophoretic Coating for car seats


Large Image :  Cationic Epoxy E Coat Electrophoretic Coating for car seats

Product Details:
Place of Origin: Shanghai China (Mainland)
Brand Name: HAOLISEN
Certification: IATF16949 , ISO9001
Model Number: HL-1607LB/HLS-1701A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 50kg、60 kg、200kg、1000kg packaging barrels
Delivery Time: 30-60 Days
Supply Ability: 200 Tons Per Day
Detailed Product Description
Application Field: Car Seats Performance: Good Stability
Cooperation Case: Intier Jiao Yun Automotive Main Ingredients: Surface Active Agent, Prevent Shrinkage Cavity Agent
High Light:

Cationic Epoxy electrophoretic Coating


E Coat electrophoretic Coating


Car seats cationic electrodeposition paint

Electrophoretic coating for car seat industry


Product Introduction


HL-1607LB/HLS-1701A Black Cationic Epoxy Electrocoat for auto is a new generation electrophoretic coating researched and developed by HLS Paint (Shanghai) Co., Ltd.

It represents modern technology of cathodic electrophoretic coating that is environment-friendly with high property and low cost. Such coating does not contain heavy metal like lead, tin, cadmium and mercury etc. It is a two-component, water-dispersed resin,meanwhile, it took in features of previous products, and can adapt galvanized steel sheet perfectly, almost can be applied to foundation coating of all metal, such as: cold and hot rolled steel sheet, galvanized steel sheet, aluminum products and stainless steel sheet etc.


This product features shown below: 


The bath has strong anti-shrink age andanti-pollutionability. 
Coating fullness of good,better sub strate hiding.
The appearance of the coating is flat, delicate, smooth, uniform high gloss.
Strong anti-corrosion properties, good salt spray resistance workpiece edge.


Main ingredients


Pigment:carbon black, kaolin, antirust pigment


Additives:surface active agent, prevent shrinkage cavity agent


Product quality data


Project Technical data Test standard

Black Paste


Appearance —— Milky white liquid Black viscous liquid,no agglomeration Visual
pH 25℃ 6.0±1.0 —— GB/T 9724
Conductivity 25℃, μs/cm 1400±600 —— HG/T 3334
Storage stability
No stratified state, and there were no obvious difference compared to before storage
In 5-35 ℃ temperature 1 year

Note: pH, conductivity measurement in the resin/pure water = 1:1 dilution

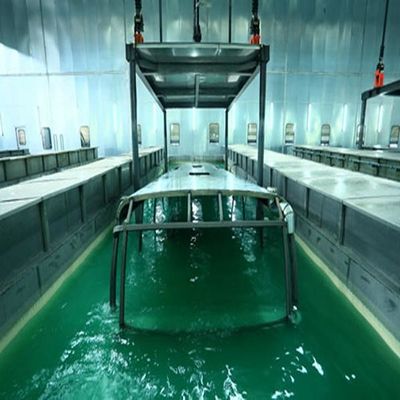

Customer production site:


Cationic Epoxy E Coat Electrophoretic Coating for car seats 0
