ISO9001 Grey Electrophoretic Coating With Alcohol Ether Main Ingredients


Large Image :  ISO9001 Grey Electrophoretic Coating With Alcohol Ether Main Ingredients

Product Details:
Place of Origin: Shanghai China (Mainland)
Brand Name: HAOLISEN
Certification: IATF16949 , ISO9001
Model Number: HLS-5701LB/HLS-5750
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 50kg、60 kg、200kg、1000kg packaging barrels
Delivery Time: 30-60 Days
Supply Ability: 200 Tons Per Day
Detailed Product Description
Main Ingredients: Alcohol Ether Application Field: Bus
Performance: High Anticorrosive Cooperation Case: ASIASTAR;KING LONG
High Light:

e coat paint


epd coating


Product Introduction :

HLS-5701LB/HLS-5750 Gray Cationic Epoxy Electrocoat for auto is the 7th generation electrophoretic coating researched and developed by HLS Paint (Shanghai) Co., Ltd. in cooperation with Germany HS International Chemical Industry Group.

It represents modern technology of cathodic electrophoretic coating that is environment-friendly with high property and low cost. Such coating does not contain heavy metal like lead, tin, cadmium and mercury etc. It is a two-component, water-dispersed resin,meanwhile, it took in features of previous products, and can adapt galvanized steel sheet perfectly, almost can be applied to foundation coating of all metal

such as: cold and hot rolled steel sheet, galvanized steel sheet, aluminum products, zinc-aluminum alloy sheet and stainless steel sheet etc.


This product features shown below:
The appearance of the coating is flat, delicate, smooth. 
The bath has strong anti-shrinkage and anti-pollution ability. 

High throwing power, internal and external uniformity. 
suitable for auto body industry, such as cars, SUV and other models

The main component :
Matrix resin: polyurethane modified epoxy resin
Neutralizing agent::organic acid
Additives::surface active agent, prevent shrinkage cavity agent, anti-yellowing agent.


The main supplier:

Material nameSupplier
Bisphenol A epoxy resinsFormosa Plastic Group / Kukdo / Dow Chemical
Titanium pigmentDuPont


Product quality data:


ProjectTechnical dataTest standard
Grey Paste (HLS-5750)
pH25℃6.0±1.0——GB/T 9724
Conductivity25℃, μs/cm1100±400——HG/T 3334
Appearance——Milky white liquidGrey viscous liquid,no agglomerationVisual
Storage stability
No stratified state, and there were no obvious difference compared to before storage
In 5-35 ℃ temperature 1 year

Note: pH, conductivity measurement in the resin/pure water = 1:1 dilution

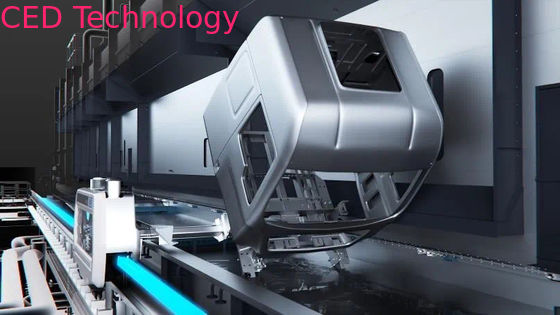

Customer production site​ :
ISO9001 Grey Electrophoretic Coating With Alcohol Ether Main Ingredients 0
