Household Refrigerator Cationic Electrodeposition Paint With Surface Active Agent Additives

Good quality Cathodic Electrodeposition Paint for sales
Good quality Cathodic Electrodeposition Paint for sales
I'm Online Chat Now

Household Refrigerator Cationic Electrodeposition Paint With Surface Active Agent Additives

China Household Refrigerator Cationic Electrodeposition Paint With Surface Active Agent Additives supplier
Household Refrigerator Cationic Electrodeposition Paint With Surface Active Agent Additives supplier Household Refrigerator Cationic Electrodeposition Paint With Surface Active Agent Additives supplier

Large Image :  Household Refrigerator Cationic Electrodeposition Paint With Surface Active Agent Additives

Product Details:

Place of Origin: Shanghai China (Mainland)
Brand Name: HAOLISEN
Certification: IATF16949 , ISO9001
Model Number: HL-1607LB/HLS-1701A

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 50kg、60 kg、200kg、1000kg packaging barrels
Delivery Time: 30-60 Days
Supply Ability: 200 Tons Per Day
Contact Now
Detailed Product Description
Application Field: Freezer Performance: Resistance To Low Temperature
Cooperation Case: Meiling,Huamei Main Ingredients: Carbon Black, Kaolin; Antirust Pigment

Household refrigerator, refrigerator industry electrophoretic coating



Product Introduction





HL-1607LB/HLS-1701A Black Cationic Epoxy Electrocoat for auto is a new generation electrophoretic coating researched and developed by HLS Paint (Shanghai) Co., Ltd.



It represents modern technology of cathodic electrophoretic coating that is environment-friendly with high property and low cost. Such coating does not contain heavy metal like lead, tin, cadmium and mercury etc. It is a two-component, water-dispersed resin,meanwhile, it took in features of previous products, and can adapt galvanized steel sheet perfectly, almost can be applied to foundation coating of all metal, such as: cold and hot rolled steel sheet, galvanized steel sheet, aluminum products and stainless steel sheet etc.







This product features shown below: 



Good stability of bath can adaptable for a longer updating cycle;



Strong anti-corrosion properties, good salt spray resistance workpiece edge;



Coating fullness of good,better sub strate hiding..



Main ingredients





Pigment: carbon black, kaolin, antirust pigment





Curing agent: totally enclosed multi-isocyanates





Additives:surface active agent, prevent shrinkage cavity agent







Product film performance



Project Indicator Test standard
Appearance Normal / abnormal Normal Ocular estimate
Hardness 2H GB/T 6739
Cup drawing mm ,≥ 6 GB/T 9753
Adhesion Level 0 GB/T 9286
Flexibility mm 1 GB/T 1731
Impact kg·cm 50 GB/T 1732
Gloss 60 50-80 GB/T 9754
Water resistance h,(23±2)℃,≥ 240 GB/T 1733
Acid resistance h,(50g/L H2SO4),≥ 72 GB/T 9274
Alkali resistance h,(50g/L NaOH),≥ 72 GB/T 9274
*Salt spray resistanc​e h,(film thickness ≥ 20μm) ,≥ 1000 GB/T 1771

* Note: The substrate use the Bonder standard phosphating steel panel, crossed out unidirectional expansion eclipse ≤ 2mm.

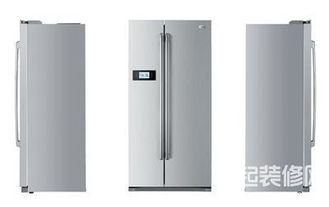

Customers in the refrigerator industry:



Household Refrigerator Cationic Electrodeposition Paint With Surface Active Agent Additives Household Refrigerator Cationic Electrodeposition Paint With Surface Active Agent Additives
